Reactor 2 Internal Heated Hoses

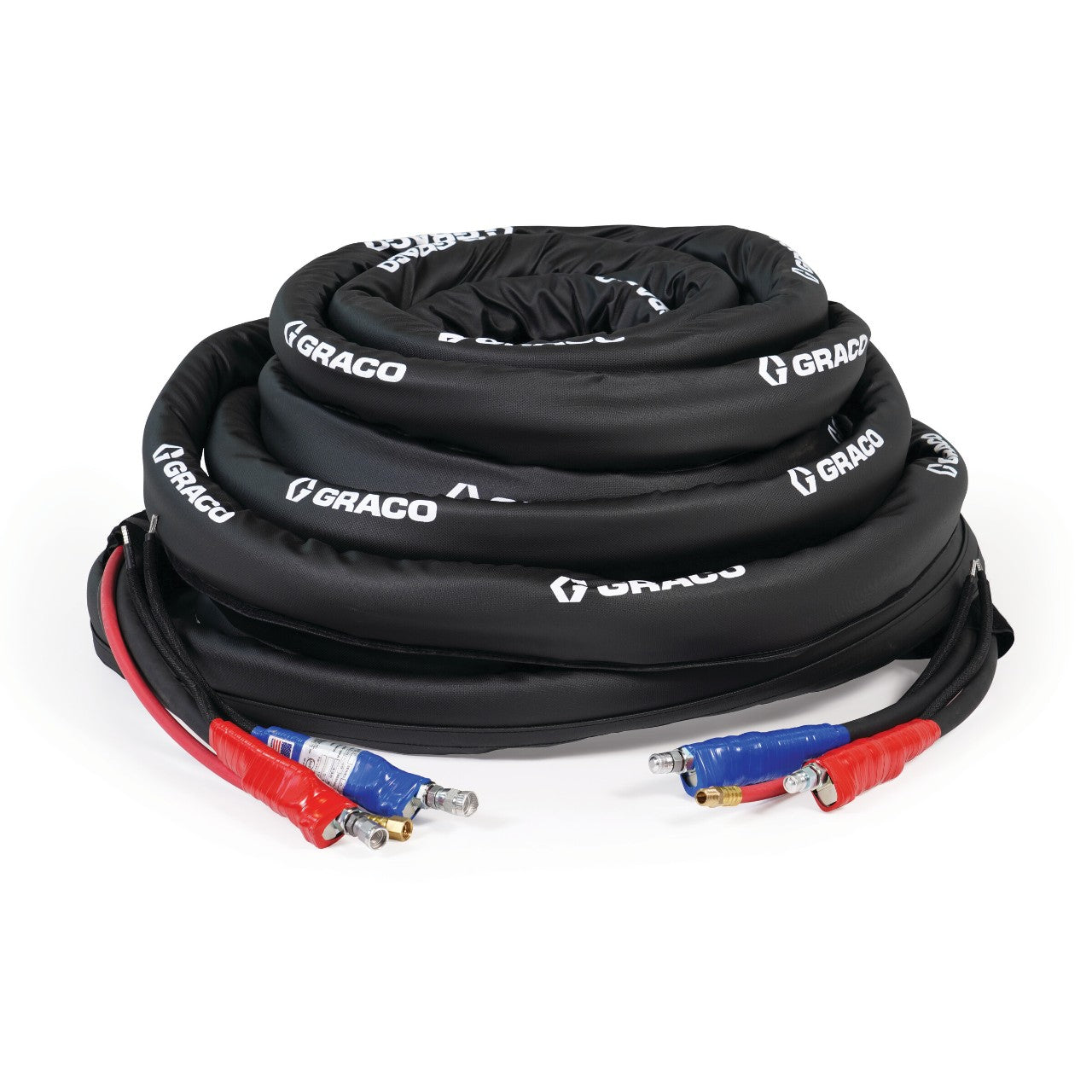

REACTOR® 2 INTERNALLY HEATED HOSES
Faster to Heat, Lighter Weight, Improved Flexibility

Designed to optimize weight and flexibility while providing faster heat-up times.

DESIGNED FOR SPEED AND RELIABILITY
• Compatible with Reactor 2 proportioners, no new hardware required

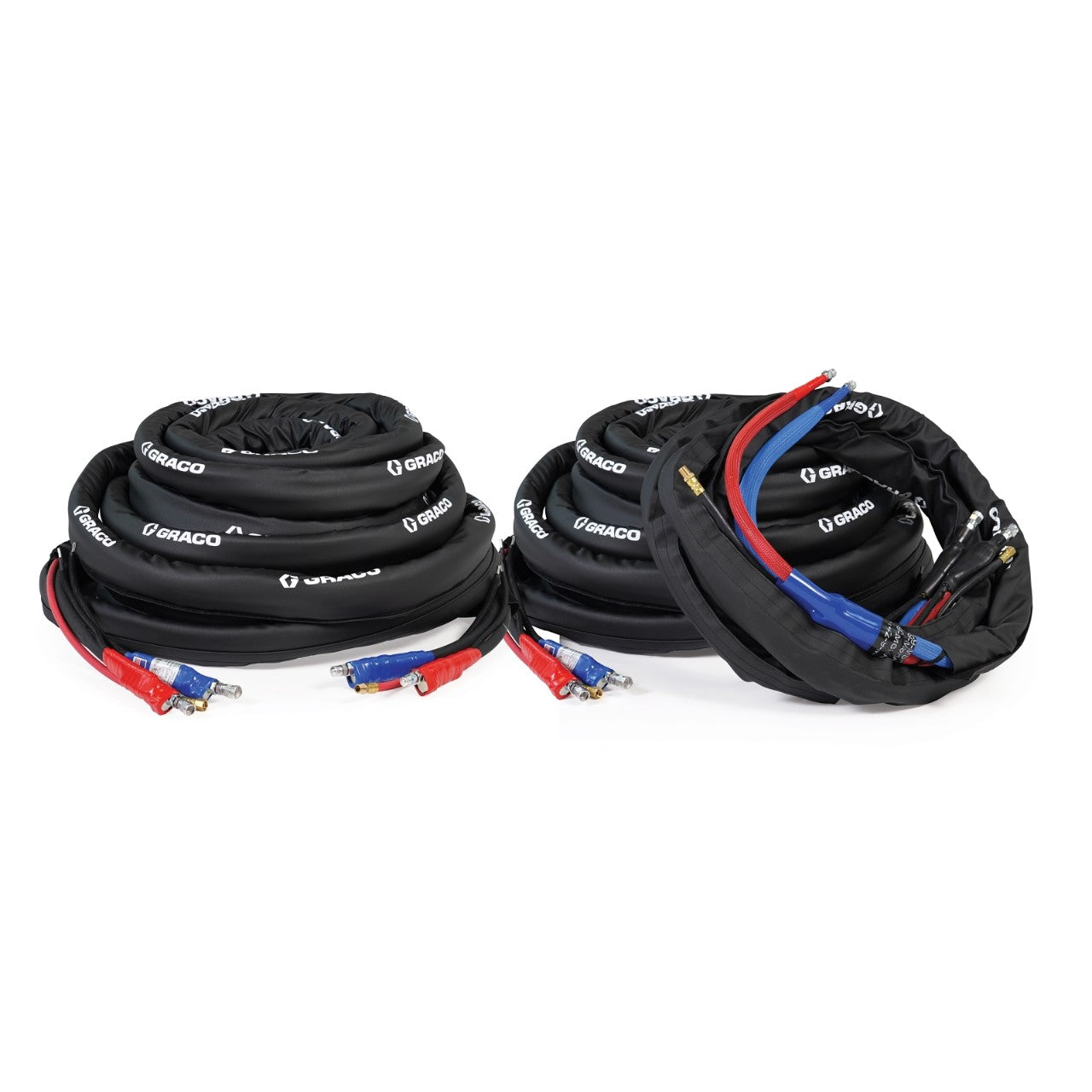

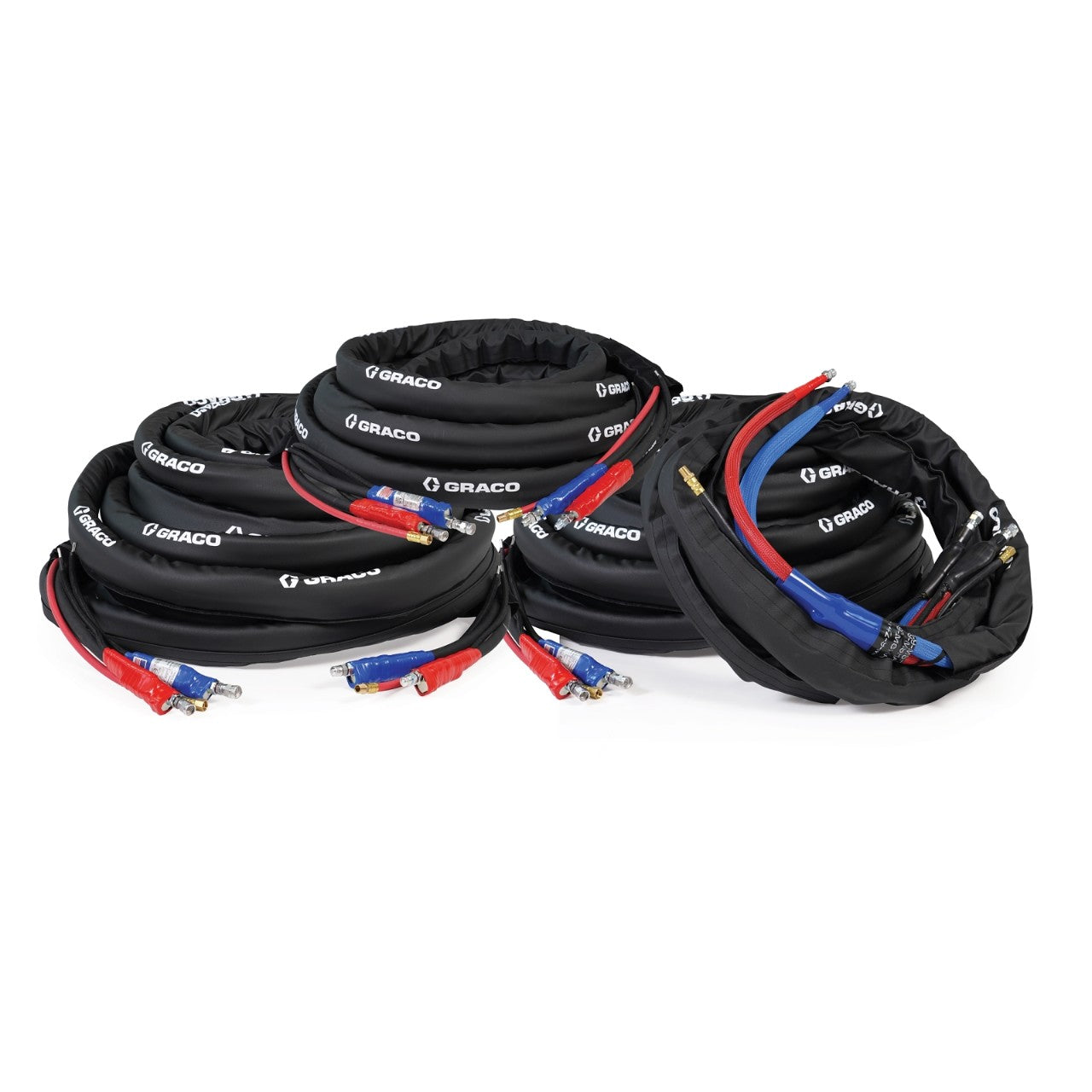

• New hoses available in 50ft and 100ft lengths: Minimize fluid and electrical connections
• Optimized for Resistance Control Mode. Eliminates issues associated with temperature
cables and sensors

GRACO'S NEW INTERNAL HEATED HOSE HAS THE SMALLEST, LIGHTEST WEIGHT CONNECTIONS IN THE INDUSTRY

The robust, compact design allows the heating element to enter/exit the fluid stream at each hose joint without adding significant size or weight.

Heating Wire
The heating wire is located in the hose ID for direct material contact and quick heating
Wire Seal Nut/Ferrule/O-ring/Bushing
These components allow the heating wire to transition out of fluid and provide a proper seal
Crimp Connector
Connects the heating wire to the multi-strand wire that allows the hose power to connect between hose joints

*Note: Internally heated hoses can not be combined with externally heated hoses. To optimize heat-up time update your Reactor software 4.02.003 or greater.

**Note: All hose packages include Reactor software token 17E206.
