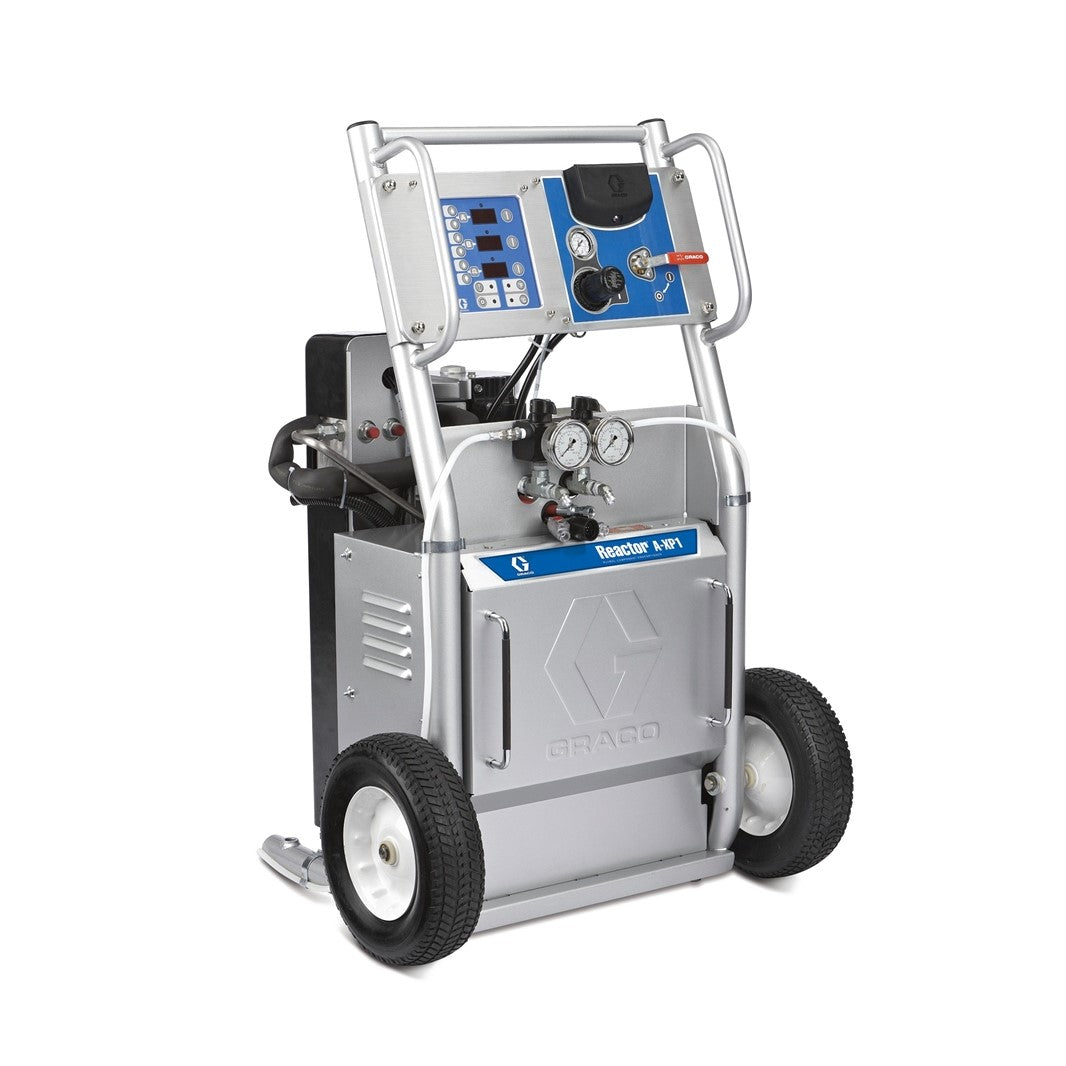

The Reactor A-XP1 is a Graco-engineered coatings proportioner that gives you the reliability you expect on the job site. It maintains consistent temperature control, even when you're spraying at maximum flow rates – resulting in better-quality coating.
For polyurea coatings – applies up to 1.5 gal (5.7 L) per minute.
Three Heat Zones
Quick Knockdown Pumps
NXT Air Motor
ISO Pump Lube System
Best choice for affordability and durability
Easy to operate and maintain
Maintains consistent output pressure for uniform spray pattern
Easy to operate and maintain
| AIR INLET SIZE (CM) | 1.27 |
|---|---|
| AIR INLET SIZE (IN) | 1/2 |
| AIR INLET SIZE (MM) | 12.7 |
| AIR INLET THREAD GENDER | Female |
| AIR INLET THREAD TYPE | NPT |
| AMPERAGE (A) | 26 @ 380 V ac (3-Phase WYE), 45 @ 230 V ac (3-Phase Delta), 56 @ 230 V ac (1-Phase) |
| APPLICATION | Protective Coatings |
| APPLICATOR TYPE | Manual |
| COMPATIBLE MATERIAL | Plural Components |
| COMPONENT A INLET SIZE (IN) | 3/4 |
| COMPONENT A INLET SIZE (MM) | 19.05 |
| COMPONENT A THREAD GENDER | Female |
| COMPONENT A THREAD TYPE | NPT |
| COMPONENT B INLET SIZE (IN) | 3/4 |
| COMPONENT B INLET SIZE (MM) | 19.05 |
| COMPONENT B THREAD GENDER | Female |
| COMPONENT B THREAD TYPE | NPT |
| COMPONENT TYPE | Two Component |
| FLUSH TYPE | Solvent |
| FREQUENCY (HZ) | 50/60 |
| MATERIAL APPLICATION | Polyurea, Poliurea |
|---|---|
| MAXIMUM AIR CONSUMPTION (SCFM) | 32 scfm at 2000 psi |
| MAXIMUM AIR INLET PRESSURE (BAR) | 8.62 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 862 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 125 |
| MAXIMUM FLOW RATE (CC/MIN) | 5680 |
| MAXIMUM FLOW RATE (GPM) | 1.5 |
| MAXIMUM FLOW RATE (L/MIN) | 5.68 |
| MAXIMUM FLUID TEMPERATURE (°C) | 88 |
| MAXIMUM FLUID TEMPERATURE (°F) | 190 |
| MAXIMUM FLUID VISCOSITY (CP) | 1500 |
| MAXIMUM HOSE LENGTH (FT) | 210 |
| MAXIMUM HOSE LENGTH (M) | 64 |
| MAXIMUM MIX RATIO | 1:1 |
| MAXIMUM WORKING PRESSURE (BAR) | 241 |
| MAXIMUM WORKING PRESSURE (KPA) | 24100 |
| MAXIMUM WORKING PRESSURE (MPA) | 24 |
| MAXIMUM WORKING PRESSURE (PSI) | 3500 |
| MINIMUM FLUID VISCOSITY (CP) | 250 |
| OVERALL DEPTH (CM) | 62.2 |
| OVERALL DEPTH (IN) | 24.5 |
| OVERALL DEPTH (MM) | 622 |
| OVERALL HEIGHT (CM) | 110.5 |
| OVERALL HEIGHT (IN) | 43.5 |
| OVERALL HEIGHT (MM) | 1105 |
| OVERALL WIDTH (CM) | 54.6 |
| OVERALL WIDTH (IN) | 21.5 |
| OVERALL WIDTH (MM) | 546 |
| PHASE | 1, 3 |
| POWER RATING (HP) | 17.43 |
| POWER RATING (KW) | 13 |
| POWER RATING (W) | 13000 |
| POWER SOURCE | Air |
| PRESSURE TYPE | High Pressure |
| PRODUCT TYPE | Plural Component |
| SOUND POWER LEVEL (DB(A)) | 80.1 |
| SOUND PRESSURE LEVEL (DB(A)) | 70.2 |
| TYPE | Proportioning System |
| WEIGHT (KG) | 140.6 |
| WEIGHT (LB) | 310 |
| WETTED MATERIAL | Carbon Steel, Stainless Steel, Chrome, Aluminum, Fluoroelastomer, PTFE, Nylon |
| MODEL | Reactor |
| SERIES | A-XP1 |
