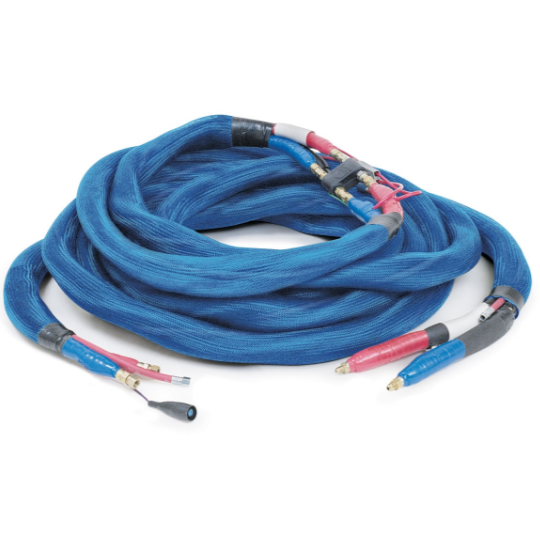

50 ft High-Pressure Heated Hose with Thermocouple Scuff Guard and 3/8 in. Inside Diameter

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

For Reactor proportioners.

• New multi-strand copper heating element has greatly increased hose quality:

  • Provides 10-times* the flex life compared to previous flat copper heating element
  • Long-term, even heating without hot spots
  • Backwards compatible with existing Reactor heated hoses

• Copper-heated hoses are designed specifically for use with Graco proportioners
• Covered with proprietary butyl cover for protection against moisture-sensitive isocyanate
• Hoses are covered with foam insulation for heat retention
• Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
• Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
• Helix-design whip hose uses braided copper wires for added flexibility and longer life

Technical Specifications

TYPE	Hose Kit
FOR USE WITH	Plural Component Proportioners, Dosificadores de componente plural
HOSE INSIDE DIAMETER (IN)	3/8
HOSE INSIDE DIAMETER (MM)	9.525
HOSE LENGTH (FT)	50
HOSE LENGTH (M)	15.2
MAXIMUM WORKING PRESSURE (BAR)	241
MAXIMUM WORKING PRESSURE (KPA)	24100
MAXIMUM WORKING PRESSURE (PSI)	3500
MAXIMUM WORKING PRESSURE (MPA)	24.1
MODEL	Reactor Heated Hoses
SERIES	Mesh Scuff
