High Output 2:1 Transfer Pumps
PMC Transfer Pumps are designed for use with polyurethane, epoxies, and most industrial and commercial coatings. Built with a wetted and divorced fluid section to prevent crystallization from harsh chemicals.

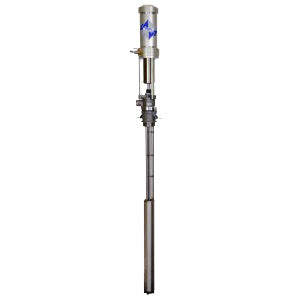

GHO 2:1 High Output Stainless Steel Transfer Pump for 55-Gallon Drums
Technical Specifications: GHO/GHO-S
Pressure Ratio: 2.2:1
Output (Cont. Duty): 5.5 Gals/min (20.8 Liters/min)
Output (Int. Duty): 11 Gals/min (41.6 Liters/min)
Heater Wattage Cycles per Gallon: 18.5 Cycles
Cycles per Liter: 4.88 Cycles
Stroke: 4″ (10.2 cm)
Maximum Air Pressure: 120 psi (8.273 bar)
Air Inlet: 1/4 NPT (F)
Fluid Output: 3/4 NPT (F)
Air Consumption: 2.0 cfm per gallon-pumped @ 100 psi
124.67 cc/sec per liter pumped @ 689 kpa
Weight: 25 lbs (11.4 kg)
GHO Length: 54.03”(1397.8 mm)
Used w/55 gallon drums
GHO-S Length: 48.92” (1242.6 mm)
Used w/30 gallon drums
